1. Structural Characteristics and Pneumatic Technology Compatibility of Pneumatic Vibrators

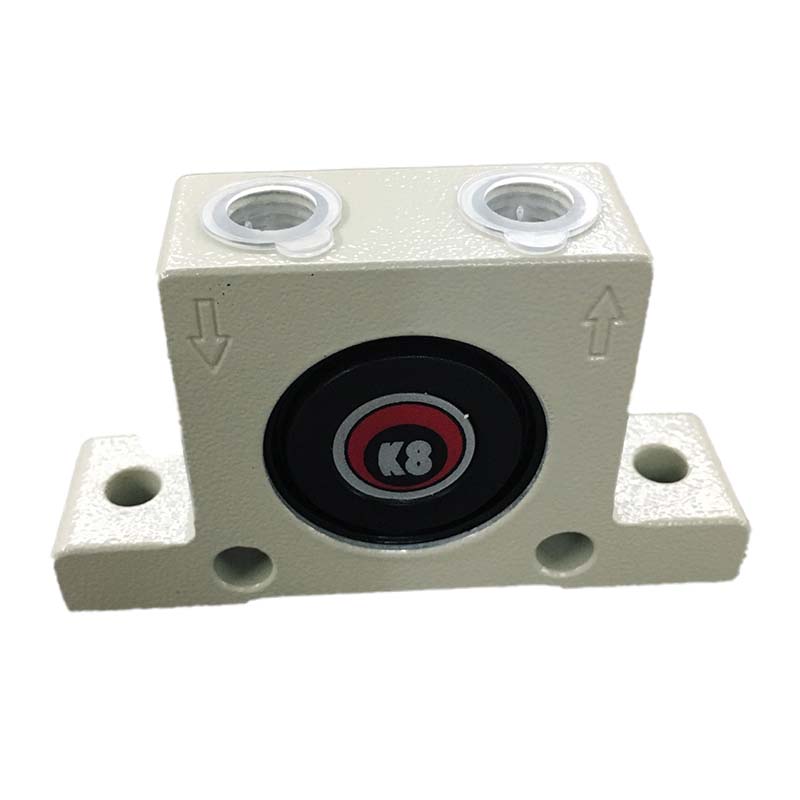

Though compact in design, this small-sized pneumatic vibrator can deliver strong and stable centrifugal vibration force by virtue of the pneumatically driven centrifugal force amplification principle—a feature that fully aligns with the core requirements of pneumatic systems for "low energy consumption and high power density". Its main body is crafted from extruded aluminum alloy, which not only meets the basic demands of pneumatic equipment for lightweight and corrosion resistance (especially suitable for pneumatic scenarios requiring regular cleaning, such as food and chemical industries) but also minimizes energy loss during vibration through the material's high rigidity. The internal rolling component is a precision-refined alloy steel roller, which is accurately positioned by two sets of special high-impact plastic end caps. This plastic material has passed oil resistance and high-pressure tests specific to the pneumatic industry, enabling it to withstand oil mist erosion and instantaneous pressure fluctuations commonly encountered in compressed air systems, while avoiding noise and wear issues caused by friction in traditional metal end caps.
In terms of installation and pneumatic system connection design, the vibrator housing is pre-drilled with two horizontal and two vertical mounting holes, supporting multi-attitude integration into pneumatic production lines (e.g., on the side walls of hoppers or beneath conveying pipelines) without the need for custom brackets. The air supply inlet adopts two mutually perpendicular air inlets, both equipped with pneumatic industry-standard pipe threads (typically G1/4 or NPT1/8 specifications), allowing direct connection to PU hoses and quick connectors in pneumatic systems, thus reducing the adaptation cost of pipeline connections. For scenarios requiring a single air supply, the equipment also comes standard with pneumatic-specific pipe plugs. Made from the same sealing material as pneumatic O-rings, these plugs effectively prevent compressed air leakage and ensure pressure stability in the pneumatic system.
2. Core Definition of Pneumatic Vibrators: Industrial Vibration Solutions Based on Pneumatic Technology
A pneumatic vibrator is a specialized device that uses compressed air as the sole power source and converts pneumatic energy into periodic mechanical vibration through the eccentric rotation of internal rotors or reciprocating motion of pistons. Unlike electric vibration equipment, its core advantage lies in relying entirely on pneumatic system drive without the need for electrical wiring. This characteristic makes it a core supporting component in pneumatic automated production lines (such as pneumatic assembly lines for auto parts and pneumatic packaging lines for food), and it is widely used in injection molding plants (linked with pneumatic demolding systems), pharmaceutical factories (complying with GMP pneumatic cleanliness standards), powder metallurgy workshops (adapting to pneumatic feeding systems), food processing plants (with washable pneumatic structures), and chemical plants (featuring pneumatic safety designs resistant to flammability and explosion). In practical applications, it can be seamlessly integrated with standard pneumatic components such as pneumatic triplets (filters, pressure regulators, lubricators) and pneumatic solenoid valves. By adjusting the pressure (0.2-0.6MPa) and flow rate of the pneumatic system, vibration parameters can be precisely controlled, ultimately improving the automation efficiency of enterprises and ensuring stable product quality control.
3. Functions of Pneumatic Vibrators: Multi-scenario Empowerment for Pneumatic Production Lines
In pneumatic automated production lines, the functions of pneumatic vibrators revolve around "optimizing the material handling process of pneumatic systems", and they excel particularly in three core links: precision machining, mold forming, and material conveying. Their specific functions can be deeply coordinated with pneumatic systems:
Optimizing Material Flow Efficiency (Pneumatic Feeding Assistance)：In equipment such as pneumatic hoppers and pneumatic chutes, vibrators break the cohesion between materials through high-frequency vibration, preventing clogging, bridging, and rat-holing of powder and granular materials caused by uneven pressure in pneumatic feeding. For example, in pneumatic powder conveying systems, vibrators can be linked with pneumatic level sensors. When the sensor detects material retention, vibration is automatically activated to ensure the continuity of pneumatic feeding.
Ensuring Accurate Material Feeding (Pneumatic Metering Coordination)：In the pneumatic metering and feeding process, vibrators can cooperate with pneumatic valves to achieve closed-loop control of "vibration-feeding-stop", ensuring that powders, granules, and small parts enter pneumatic metering devices (such as pneumatic quantitative pumps) at a stable rate. This avoids metering errors caused by fluctuations in material supply, making it especially suitable for pneumatic weighing and packaging lines in the food industry and pneumatic capsule filling lines in the pharmaceutical industry.
Improving Mold Filling Quality (Pneumatic Forming Assistance)：In pneumatic forming processes such as casting and injection molding, vibrators can be installed on the outer side of molds. Through pneumatically controlled pulsed vibration, they assist in the uniform distribution and full compaction of molten metal or plastic raw materials in mold cavities, reducing defects such as air bubbles and shrinkage holes. For instance, in aluminum alloy die-casting production lines, vibrators work synchronously with pneumatic demolding systems, ensuring both forming quality and demolding efficiency.
Accelerating Efficient Material Discharge (Pneumatic Storage Support)：For pneumatic storage equipment (such as pneumatically controlled silos and storage tanks), vibrators can promote the smooth discharge of bulk and viscous materials (such as chemical raw materials and food sauces) from the bottom of the equipment through low-frequency and large-amplitude vibration. This avoids waste of storage capacity caused by material residues and reduces the labor intensity of manual cleaning, forming efficient linkage with pneumatic discharge valves.
4. Advantages of Pneumatic Vibrators: Technical Features Aligning with Pneumatic Industry Development Trends
Against the backdrop of Industry 4.0 and the intelligent upgrading of pneumatic systems, the advantages of pneumatic vibrators are reflected not only in their basic performance but also in their ability to meet the innovative needs of the pneumatic industry for predictive maintenance and system compatibility:
Intrinsic Safety Design (Core Advantage of Pneumatic Drive)：Without the need for electric drive, it operates entirely on compressed air and can be directly used in environments common in pneumatic systems, such as flammable and explosive (e.g., chemical solvent workshops), humid and water-rich (e.g., food cleaning lines), or dust-intensive (e.g., powder metallurgy workshops) settings. No additional explosion-proof or waterproof devices are required, complying with safety operation standards in the pneumatic industry.
High Durability and Low Maintenance Costs (Natural Advantage of Pneumatic Structure)：There are no complex electrical components inside; vibration is achieved solely through mechanical structures. Key components (such as alloy steel rollers and high-impact plastic end caps) are made of wear-resistant and aging-resistant materials specific to the pneumatic industry, resulting in a mean time between failures (MTBF) far exceeding that of electric vibration equipment. Daily maintenance only requires regular lubricating oil mist supplementation through pneumatic triplets, without the need for disassembly and inspection, reducing the downtime maintenance costs of pneumatic production lines.
Adjustable Vibration Parameters (Flexibility for Pneumatic System Adaptation)：By adjusting the pressure (0.2-0.8MPa) and flow rate (with the option of matching pneumatic flow valves) of the pneumatic system, stepless adjustment of vibration frequency (2000-6000r/min) and amplitude can be achieved. For example, in pneumatic feeding scenarios, high-frequency and small-amplitude settings can be used for fine powder materials, while low-frequency and large-amplitude settings are suitable for bulk materials. No equipment replacement is needed to adapt to multiple types of materials, improving the flexibility of pneumatic production lines.
High Energy Efficiency (Core Feature of Pneumatic Technology)：Compared with electric vibration equipment, pneumatic vibrators have higher energy conversion efficiency (with compressed air utilization reaching over 75%), and they consume only a small amount of compressed air in no-load conditions (usually ≤50L/min@0.5MPa). This complies with the "energy conservation and consumption reduction" development trend of the pneumatic industry and can significantly reduce the operating costs of enterprise pneumatic systems in long-term use.
Industry 4.0 Compatibility (Intelligent Upgrading of Pneumatics)：New-generation pneumatic vibrators can be integrated with pneumatic pressure sensors and vibration frequency detection modules, which transmit operational data (such as intake pressure and vibration times) to the PLC or industrial Internet of Things platform of the pneumatic system in real time. This supports predictive maintenance (e.g., early warning of component wear through abnormal vibration frequency), perfectly adapting to the intelligent management needs of pneumatic production lines in the context of Industry 4.0.
5. Industrial Applications of Pneumatic Vibrators: In-depth Adaptation Covering All Scenarios of Pneumatic Systems
Beyond basic application scenarios, pneumatic vibrators have more targeted applications in segmented fields of the pneumatic industry, addressing specific pain points of various pneumatic production lines:
Pneumatic Storage and Conveying Systems：In pneumatic hoppers and pneumatic silos, they are used to clear the retention of powder and bulk materials. They are particularly suitable for pneumatic powder conveying systems in the chemical industry (e.g., PVC powder, calcium carbonate powder) and pneumatic grain storage systems in the food industry, preventing pneumatic feeding clogging caused by material caking due to long-term storage.
Pneumatic Forming and Processing Systems：In pneumatic sand mold forming lines in the casting industry, they assist in the uniform filling and compaction of molding sand; in pneumatic pouring systems for precast concrete components, they eliminate air bubbles in concrete through vibration to improve component strength; in the injection molding industry, they link with pneumatic demolding mechanisms to solve the problem of difficult demolding of plastic parts caused by complex mold structures.
Pneumatic Packaging and Metering Systems：In pneumatic food packaging lines (e.g., biscuit and candy packaging), they are used for vibration sorting of materials to ensure neat arrangement of materials inside packages; in pneumatic capsule filling lines in the pharmaceutical industry, they assist in the uniform entry of medicinal powder into capsule shells to improve metering accuracy; in pneumatic counting and packaging lines in the hardware industry, they use vibration to make small parts (such as screws and nuts) enter the counting track in an orderly manner, avoiding material jamming.
Specialized Pneumatic Industry Scenarios：In pneumatic deburring production lines in the metal processing industry, low-frequency vibration assists in full contact between abrasives and workpieces to improve deburring efficiency; in pneumatic welding auxiliary systems in the electronic assembly industry, micro-amplitude vibration eliminates air bubbles at welding points to enhance welding quality; in pneumatic dust removal equipment in the environmental protection industry, they are used for vibration cleaning of dust on the surface of filter bags to ensure the filtering efficiency of pneumatic dust removal systems.
The core commonality of these application scenarios is that pneumatic vibrators can serve as "functional extension components" of pneumatic systems, achieving in-depth collaboration with core links such as pneumatic feeding, pneumatic control, and pneumatic actuation to form a complete pneumatic automation solution. This is also the key advantage that distinguishes them from other vibration equipment.
